Mounting Components for 6 inch schedule 40 tube

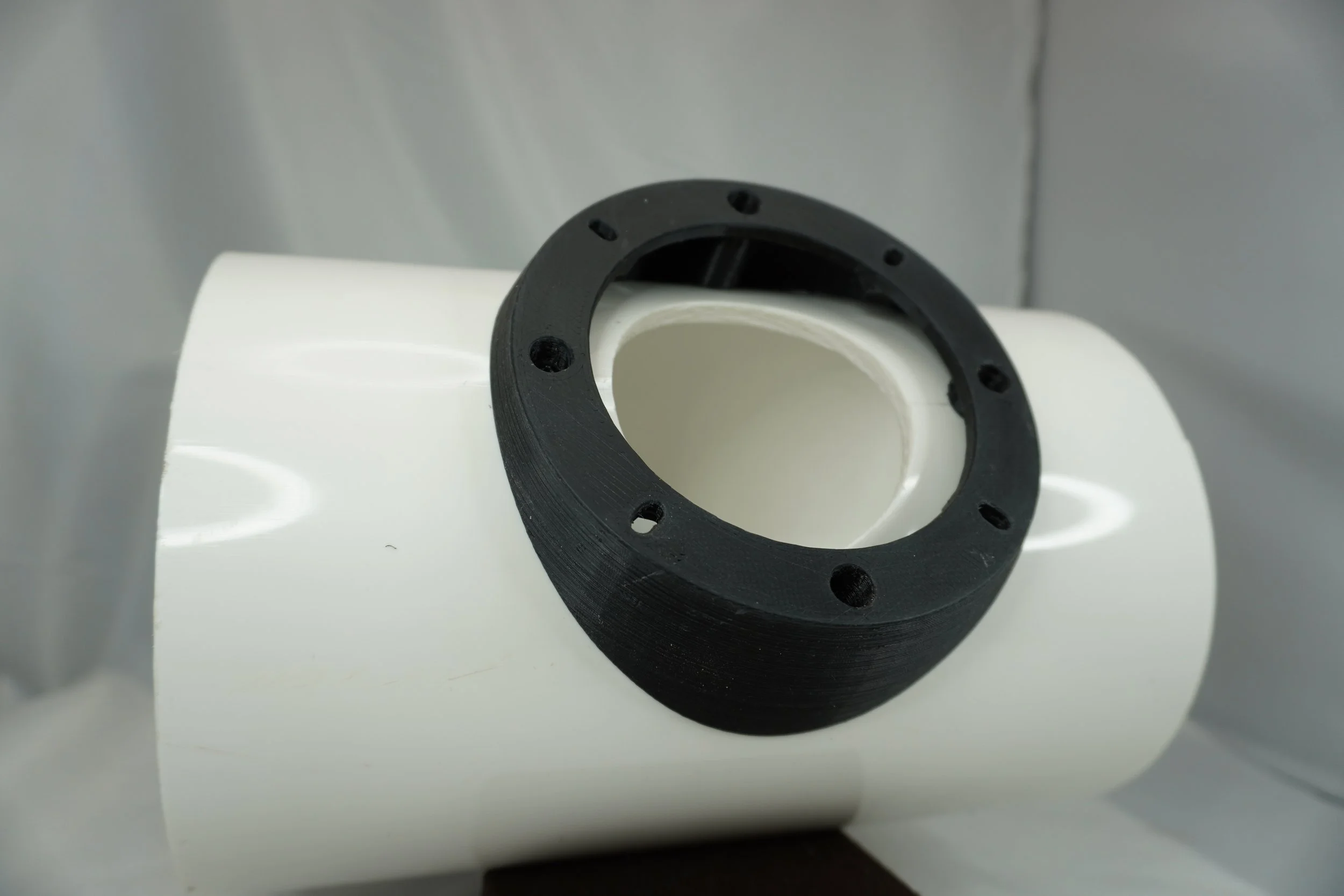

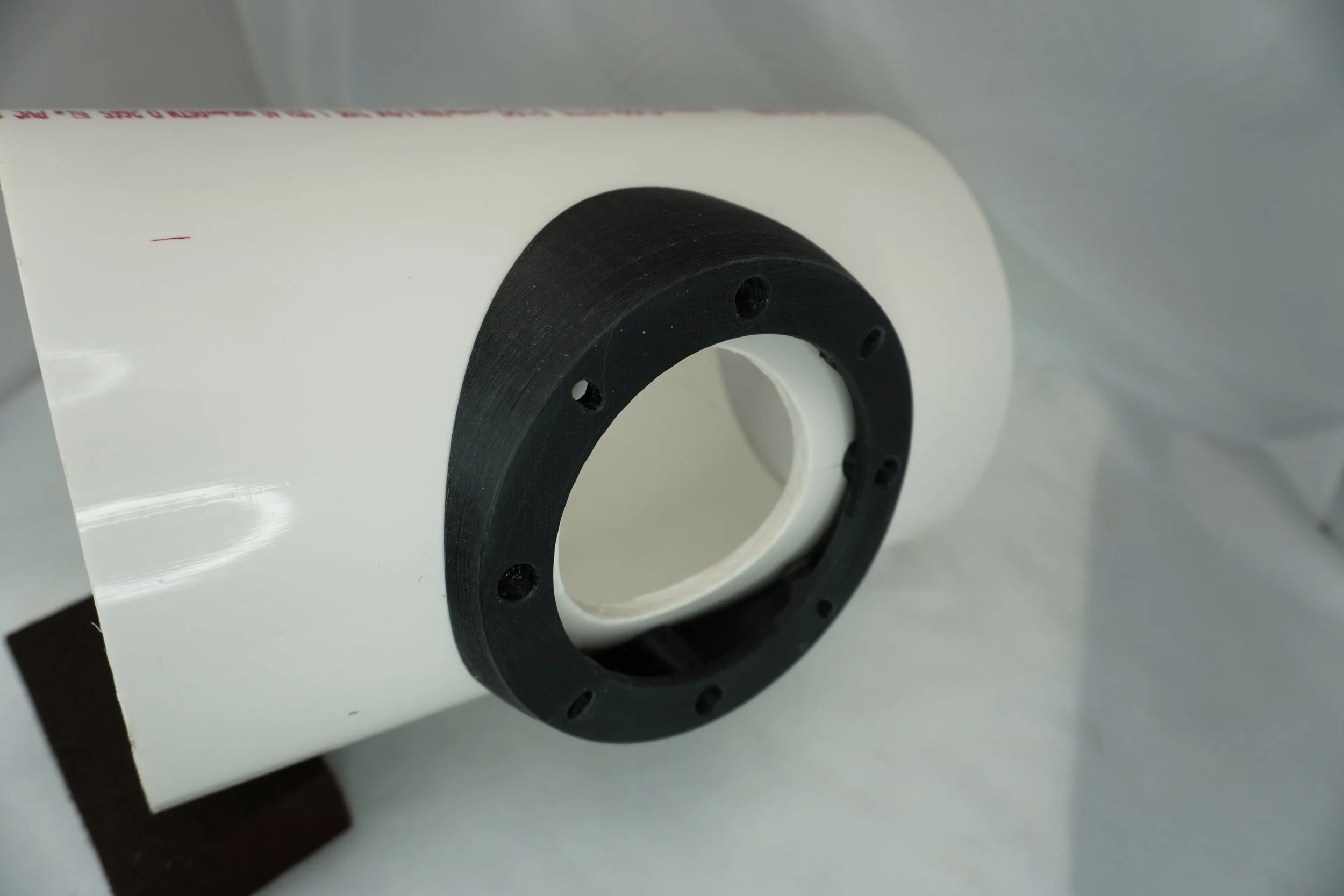

Pod for 4inch speaker
3 5/8” mounting clearance hole
This low profile pod style speaker mount allows you to mount a standard 4” speaker onto a standard 6 inch diameter tube. A clearance hole for the speaker magnet will need to be made. Typically a 3.25” through hole will provide magnet clearance.
PN: T6.40-P4

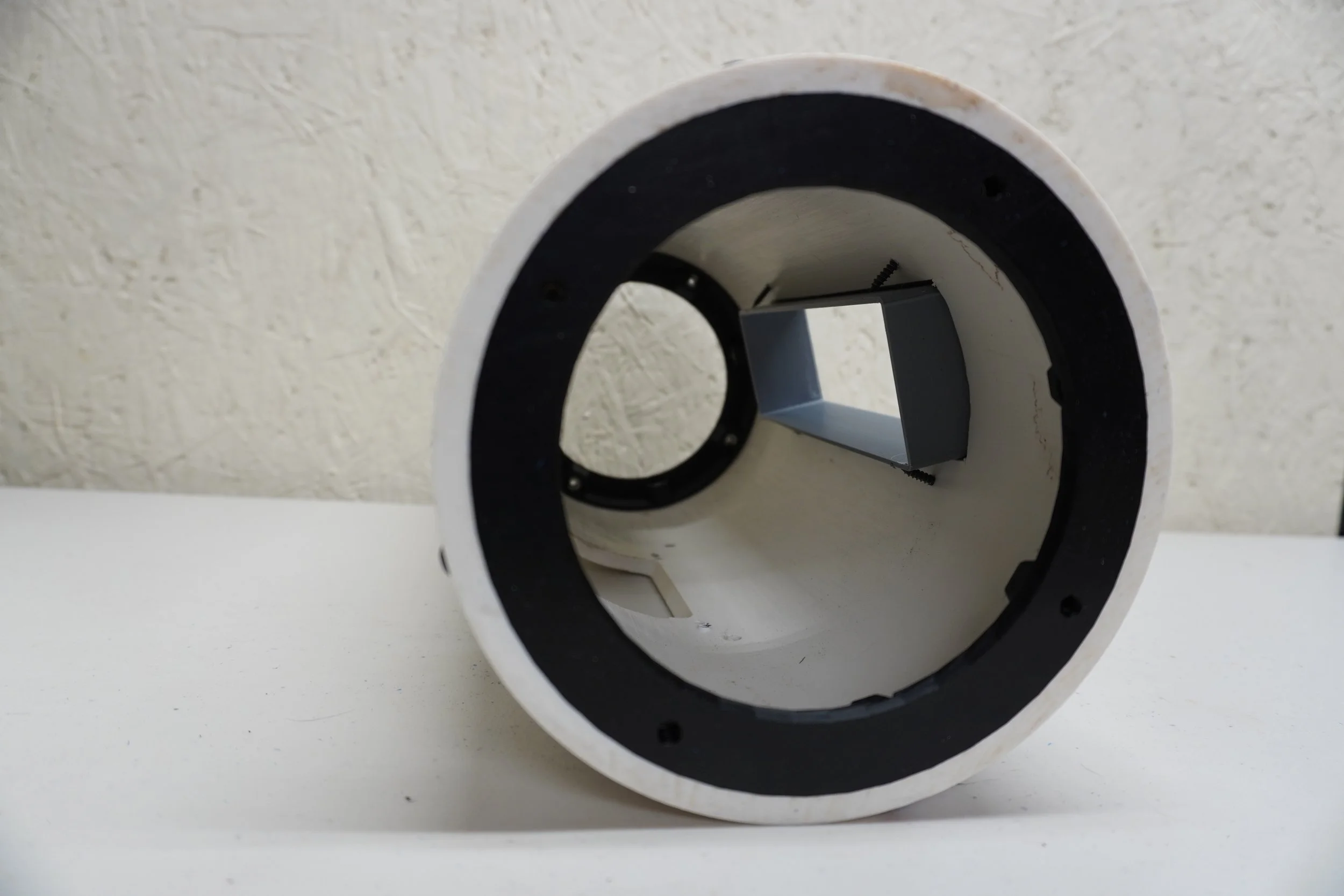

Baffle for 5 1/4” speaker
Mount a speaker into the end of a 6 inch schedule 40 pipe (tube), The baffle sits flush with the end of the tube and is mounted with four (4) 8-32 button head screws and locking nuts that are captured in the baffle.
PN: T6.40-B5.25

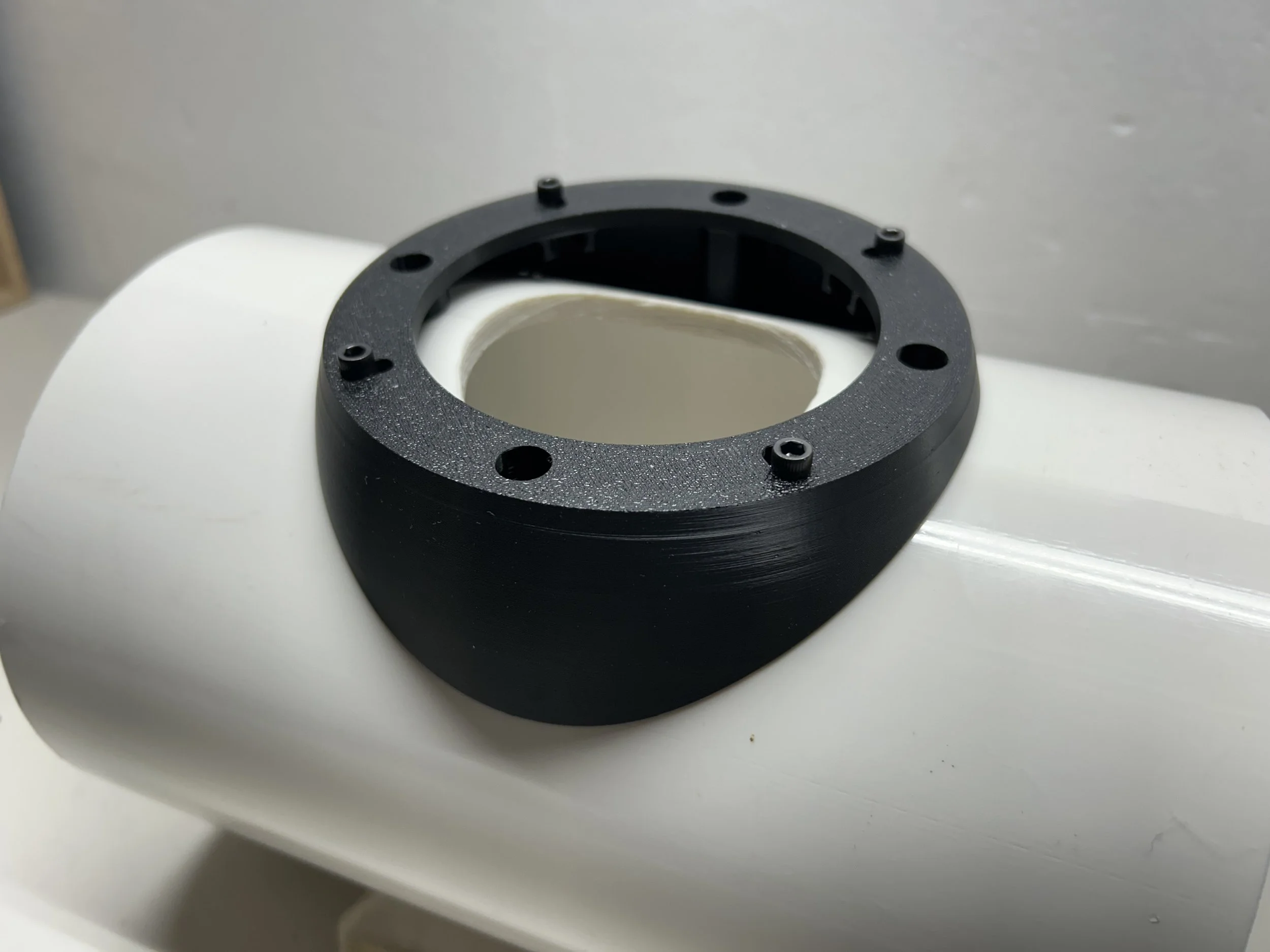

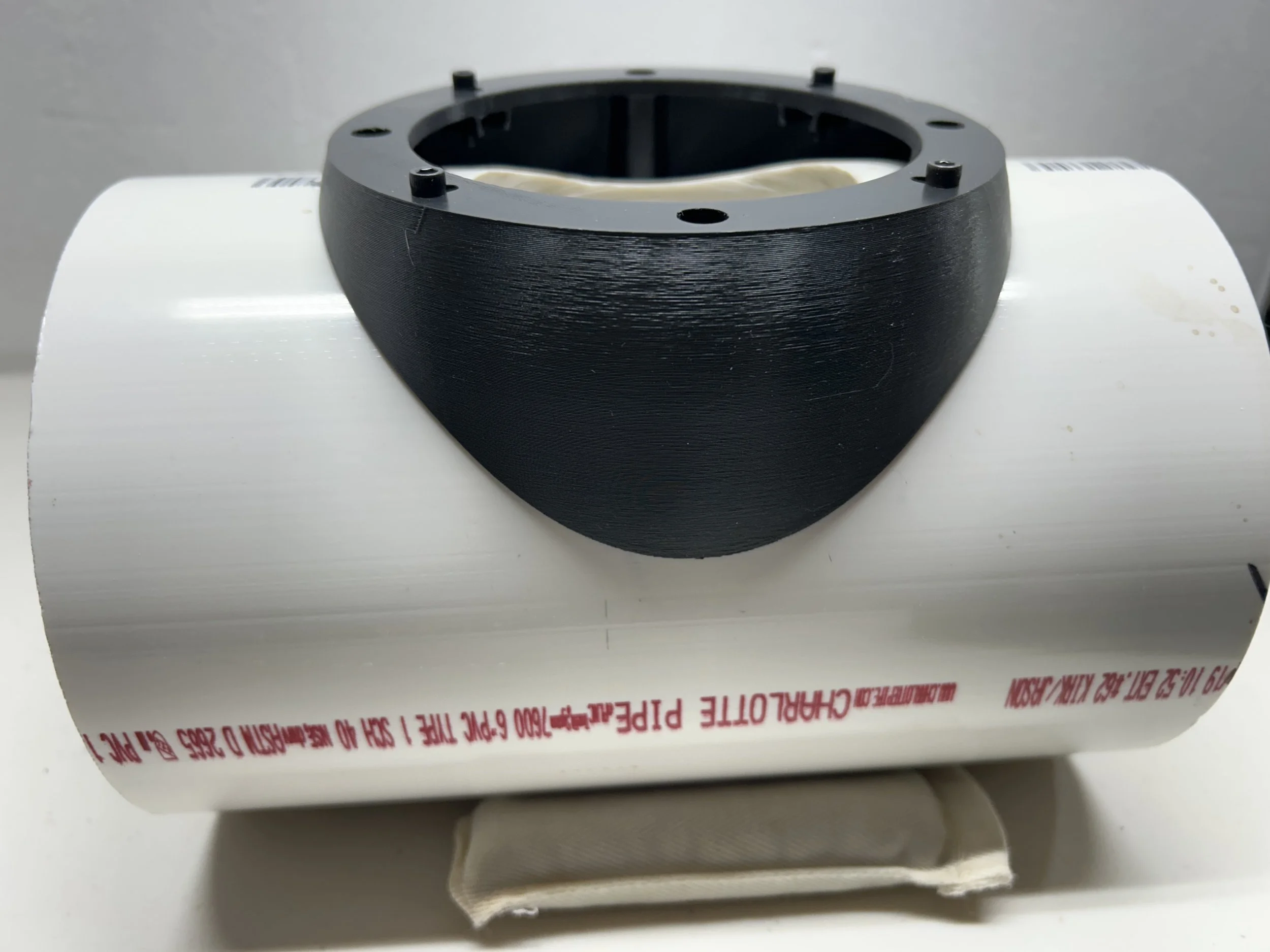

Pod for 5 1/4 inch speaker
4 5/8” mounting clearance hole
This low profile pod style speaker mount allows you to mount a standard 5.25” speaker onto a standard 6 inch diameter tube. A clearance hole for the speaker magnet will need to be made. Typically a 3.75” through hole will provide magnet clearance.
PN: T6.40-P5.25
Components available from STEMandStuff on Etsy
https://www.etsy.com/shop/STEMandStuff

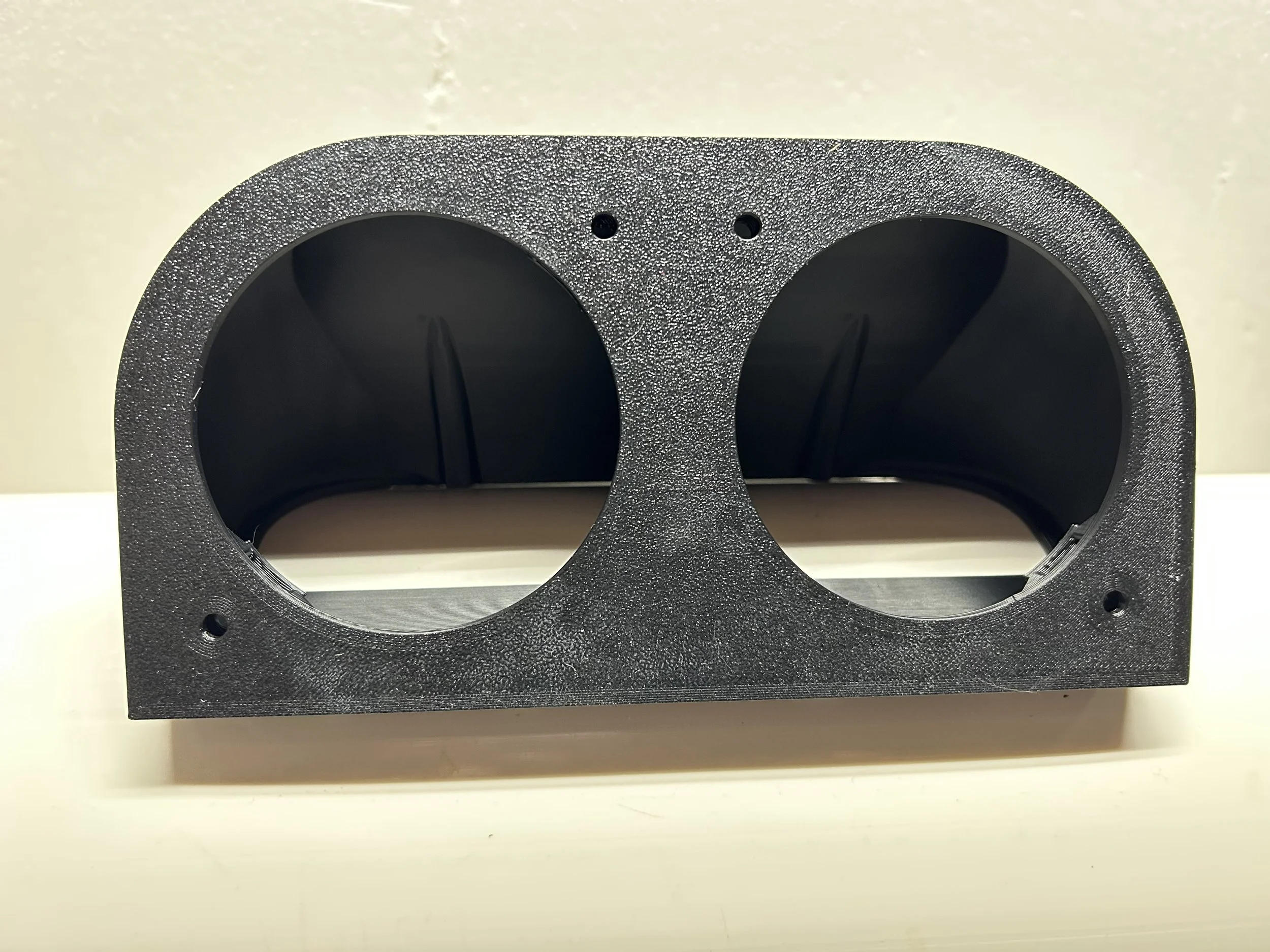

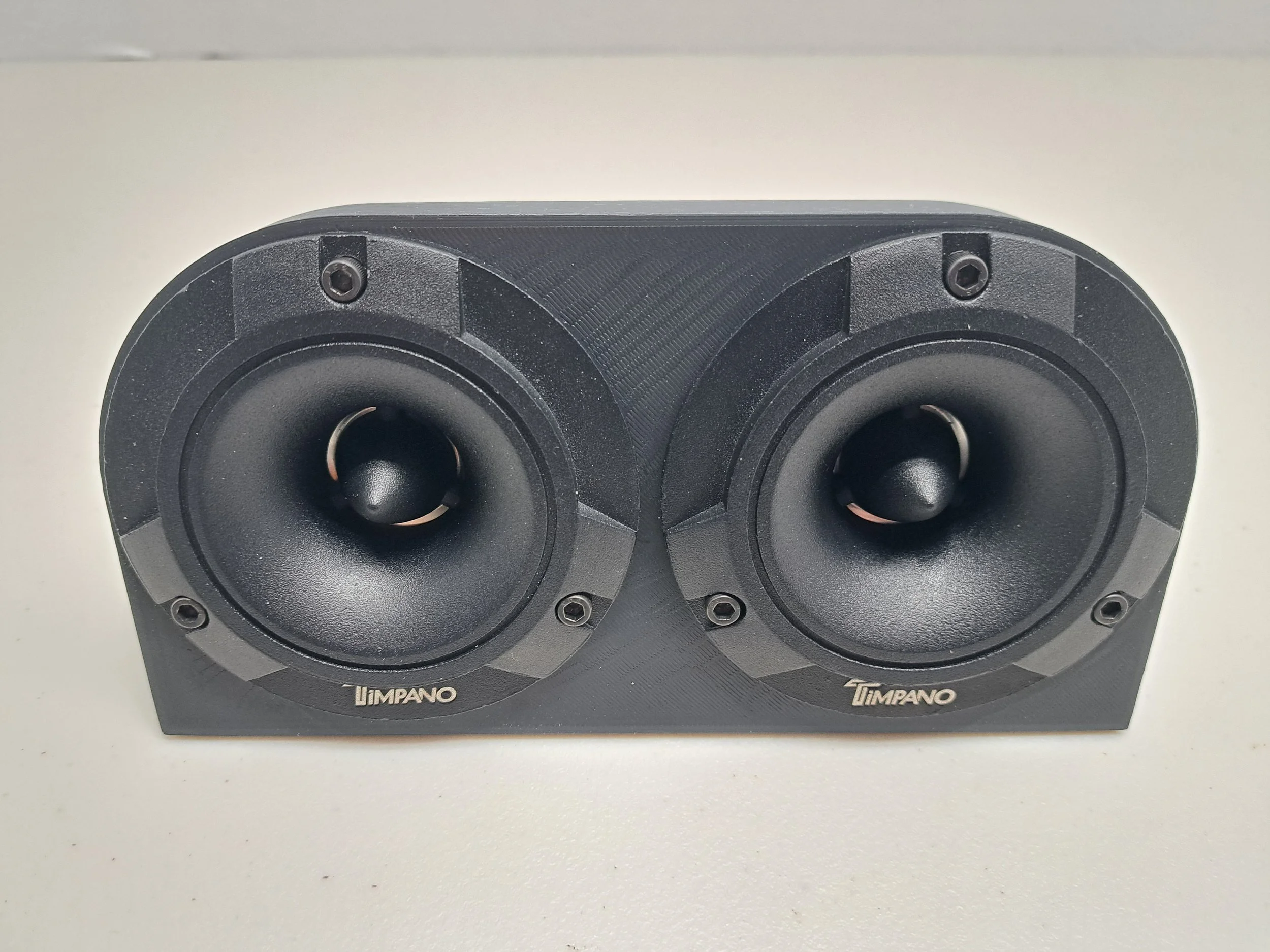

Dual mount for super tweeter
No clearance hole required
This top mounting dual super tweeter pod style allows you to mount two Timpano TPT-ST2 tweeter. Not additional clearance holes need be made into the tube. A magnet clearance is integrated into the pod itself. Kit includes two supertweeters and 6db/octave crossovers.
Pod is held in position with four (4) #8 sheet metal screws with additional mounting positions available. This pod is designed to fit snugly up against a single or double DIN head bracket.
PN: T6.40-PDST
Pod for super tweeter
3 1/4" mounting clearance hole
This low profile pod style speaker mount allows you to mount a Timpano TPT-ST2 tweeter. A magnet clearance hole will need to be made. Typically a 3” through hole will provide magnet clearance.
PN: T6.40-PST

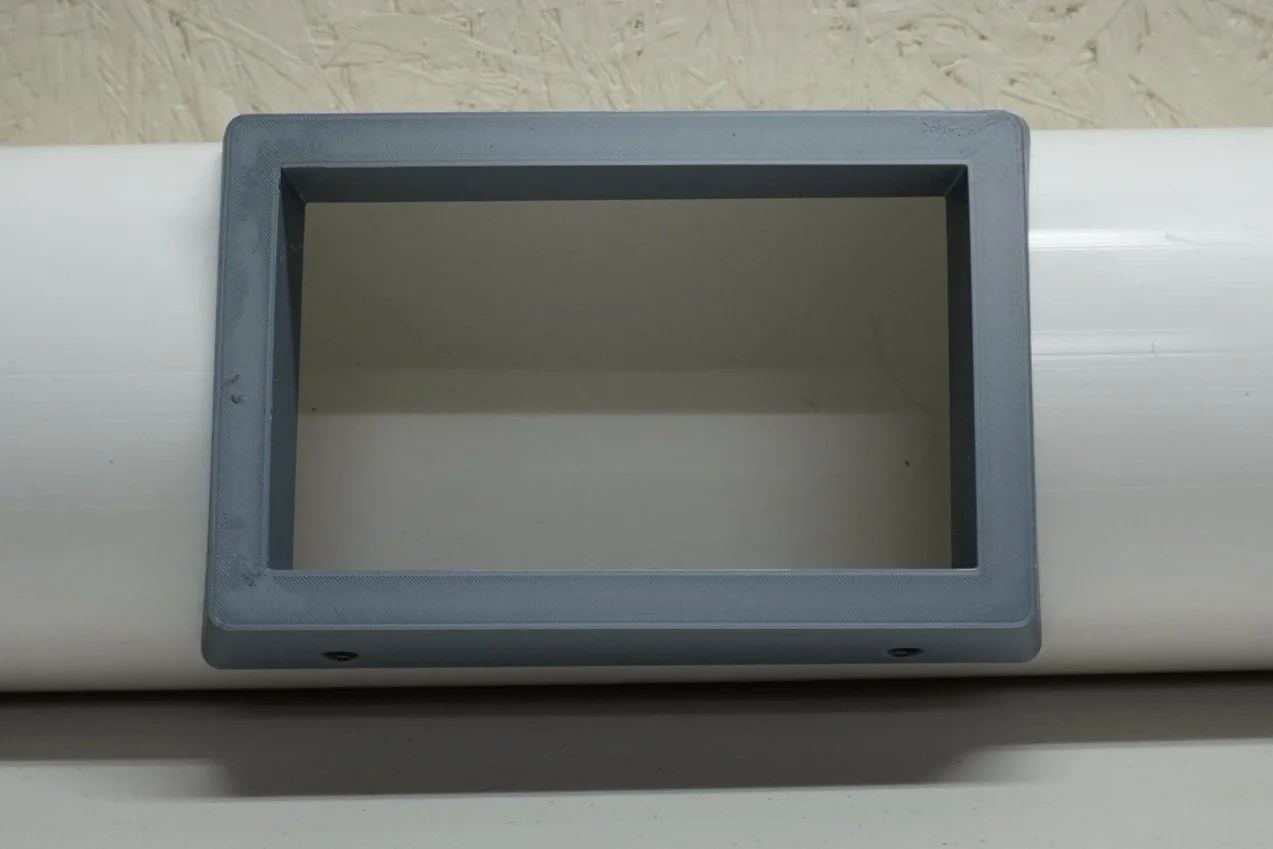

Mount for double DIN head unit
Mount a double DIN head unit (stereo) into a 6 inch schedule 40 tube. A slot must be machined into the tube. Double DIN units are popular as a video screen or GPS device screen which are often included features for larger head stereo units.
The mount overlaps the rectangular slot in the tube and is held in place with four (4) #8 sheet metal screws. Hardware is included with the kit
PN: T6.40-2DIN

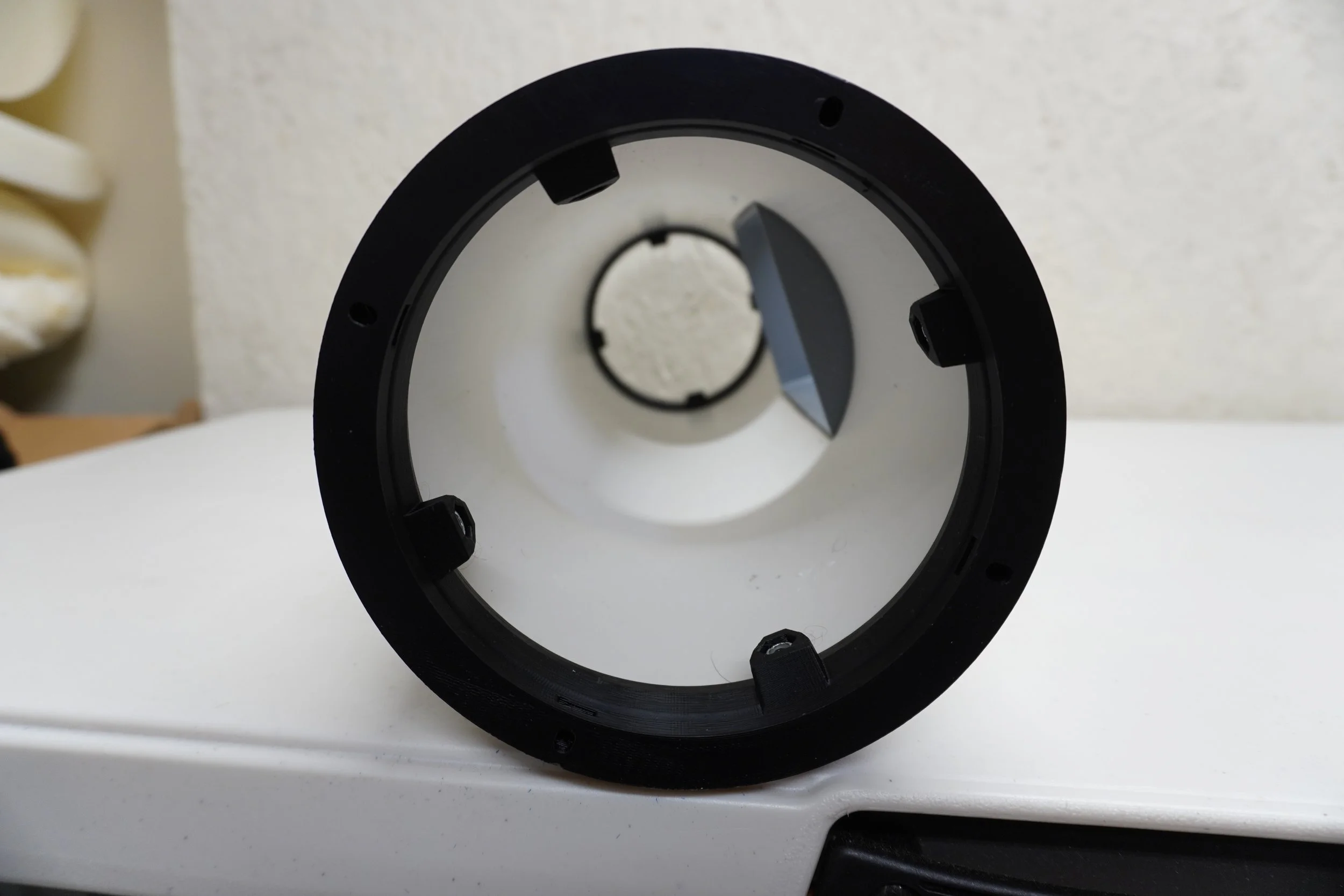

Baffle for 6 1/2” speaker
Mount a speaker into the end of a 6 inch schedule 40 pipe (tube), The baffle has a swell which allows a oversized speaker to fit into a 6 inch sch40 tube.
The baffle overlaps the tube end and is mounted with four (4) 8-32 button head screws and locking nuts that are captured in the baffle.
PN: T6.40-B6.5

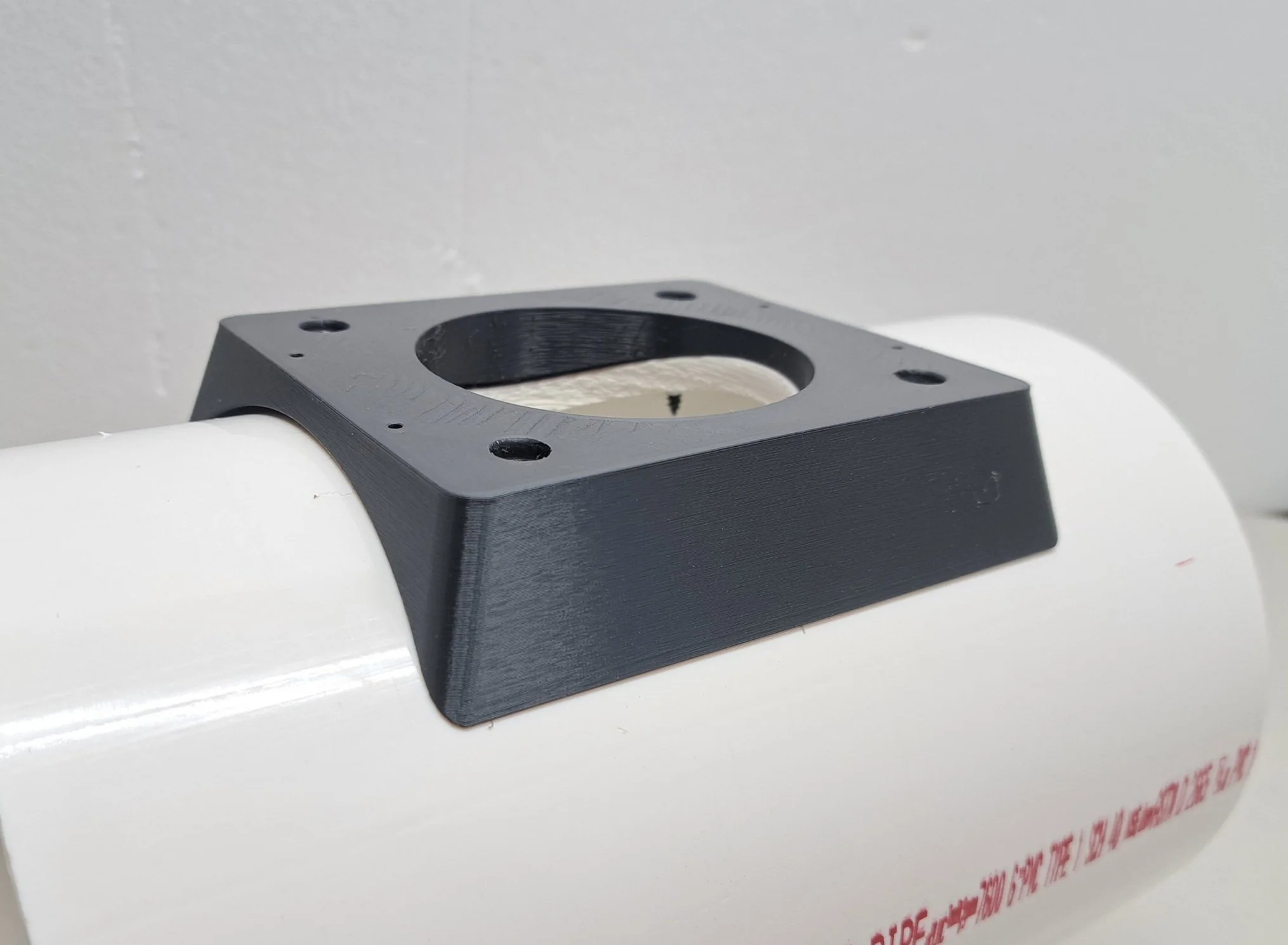

Mount for marine GMR head unit
Mount a GMR style marine style head unit (stereo) into a 6 inch schedule 40 tube. A 3 inch diameter hole must be machined into the tube. These compact mounts are popular for small boats and rugged and water resistant.
The mount overlaps the mounting hole in the tube and is held in place with four (4) #8 sheet metal screws. Hardware is included with the kit
PN: T6.40-GMR
Mount for single DIN head unit
Mount a single DIN head unit (stereo) into a 6 inch schedule 40 tube. A slot must be machined into the tube.
The mount overlaps the rectangular slot in the tube and is held in place with four (4) #8 sheet metal screws. Hardware is included with the kit
PN: T6.40-1DIN

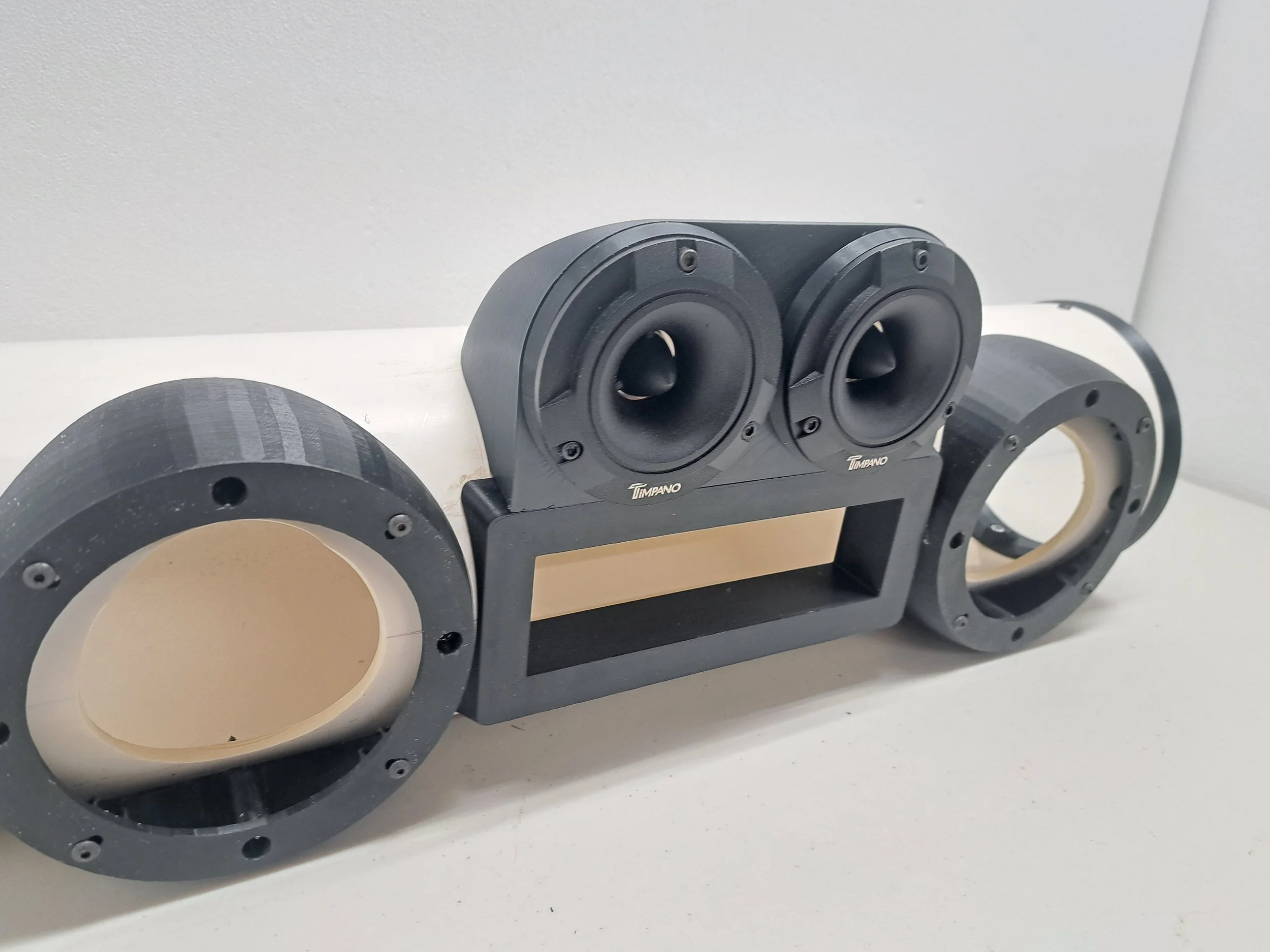

Kit Machined ready to install components
Fully machined and ready to have speakers installed into a 6 inch schedule 40 tube. The 6 inch sch40 tube comes premachined with openings for 4” speaker pods, 6.5” end speakers, loaded super tweeter pod and a single DIN mount. Tube length is roughly 20 inches not including the end baffles and speakers.
This is a great kit for someone ready to install components but doesn’t have the time/capability to machine a tube themselves. Not all local stores stock these larger tube sizes so this kit can be a significant labor and time saver.
Hardware is included with the kit.
PN: T6.40-MACH-1DIN-PDST-P4-B6.5
