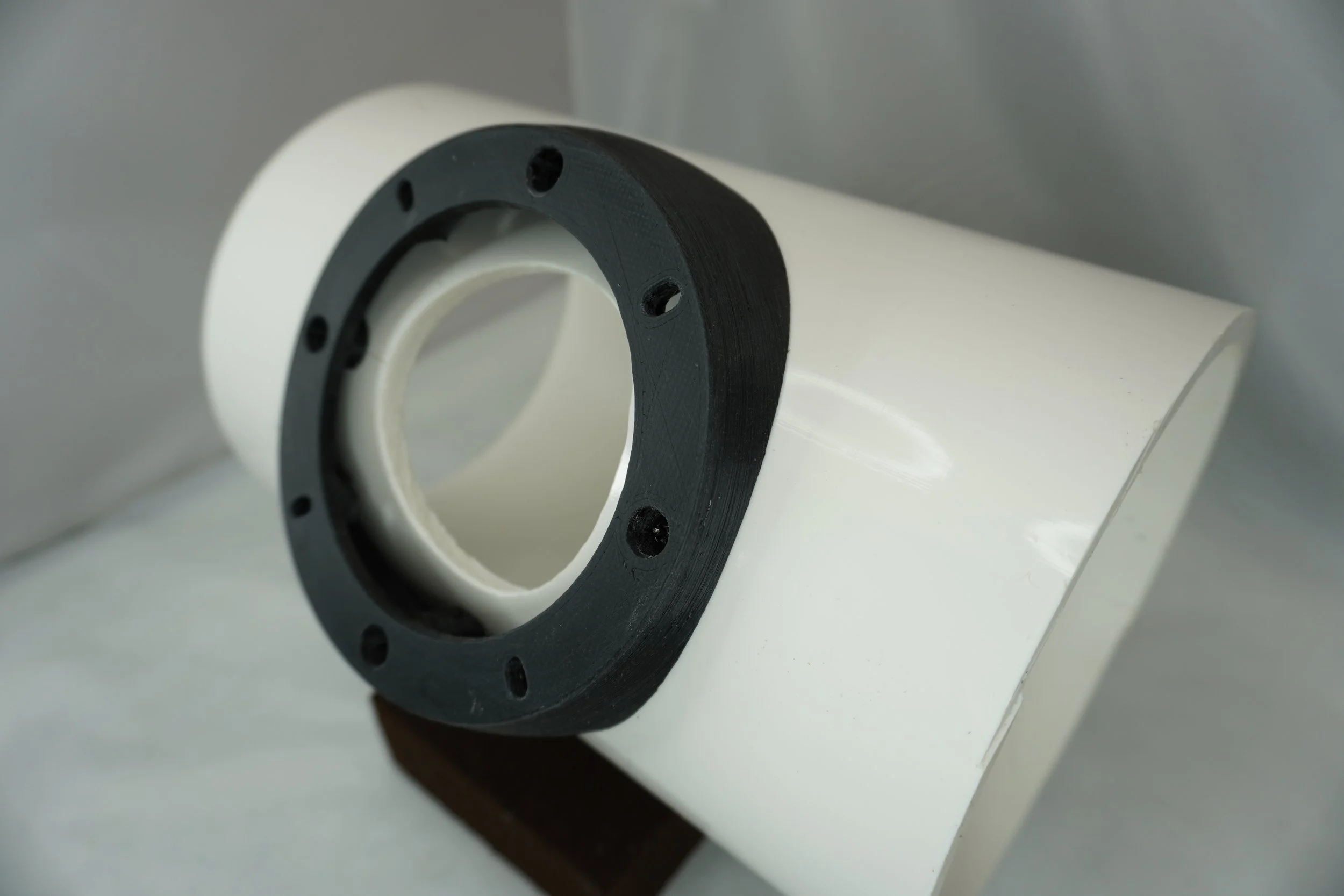

Pod for 4” inch speaker
3 5/8” mounting clearance hole
This low profile pod style speaker mount allows you to mount a standard 4” speaker onto a standard 8 inch diameter tube. A clearance hole for the speaker magnet will need to be made. Typically a 3.25” through hole will provide magnet clearance. Hardware is included with the kit.
Image is reference based on standard design.
PN: T8.40-P4

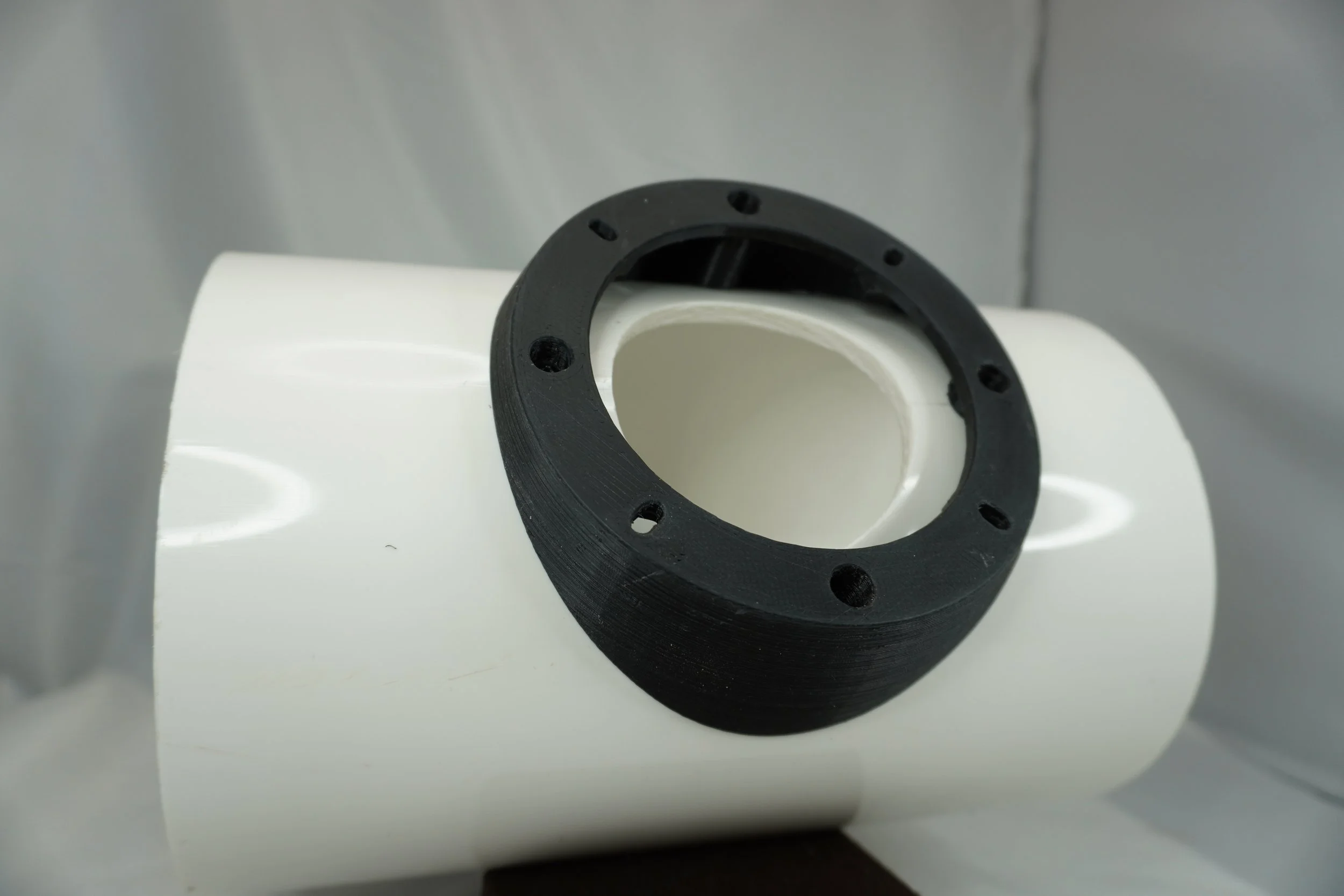

Pod for 5 1/4 inch speaker
4 5/8” mounting clearance hole
This low profile pod style speaker mount allows you to mount a standard 5.25” speaker onto a standard 8 inch diameter tube. A clearance hole for the speaker magnet will need to be made. Typically a 3.75” through hole will provide magnet clearance. Hardware is included with the kit.
Image is reference based on standard design.
PN: T8.40-P5.25
Components available from STEMandStuff on Etsy
https://www.etsy.com/shop/STEMandStuff
Pod for 6 1/2” inch speaker
5 5/8” mounting clearance hole
This low profile pod style speaker mount allows you to mount a standard 6.5” speaker onto a standard 8 inch diameter tube. A clearance hole for the speaker magnet will need to be made. Typically a 3.75” through hole will provide magnet clearance. Hardware is included with the kit.
Image is reference based on standard design.
PN: T8.40-P6.5

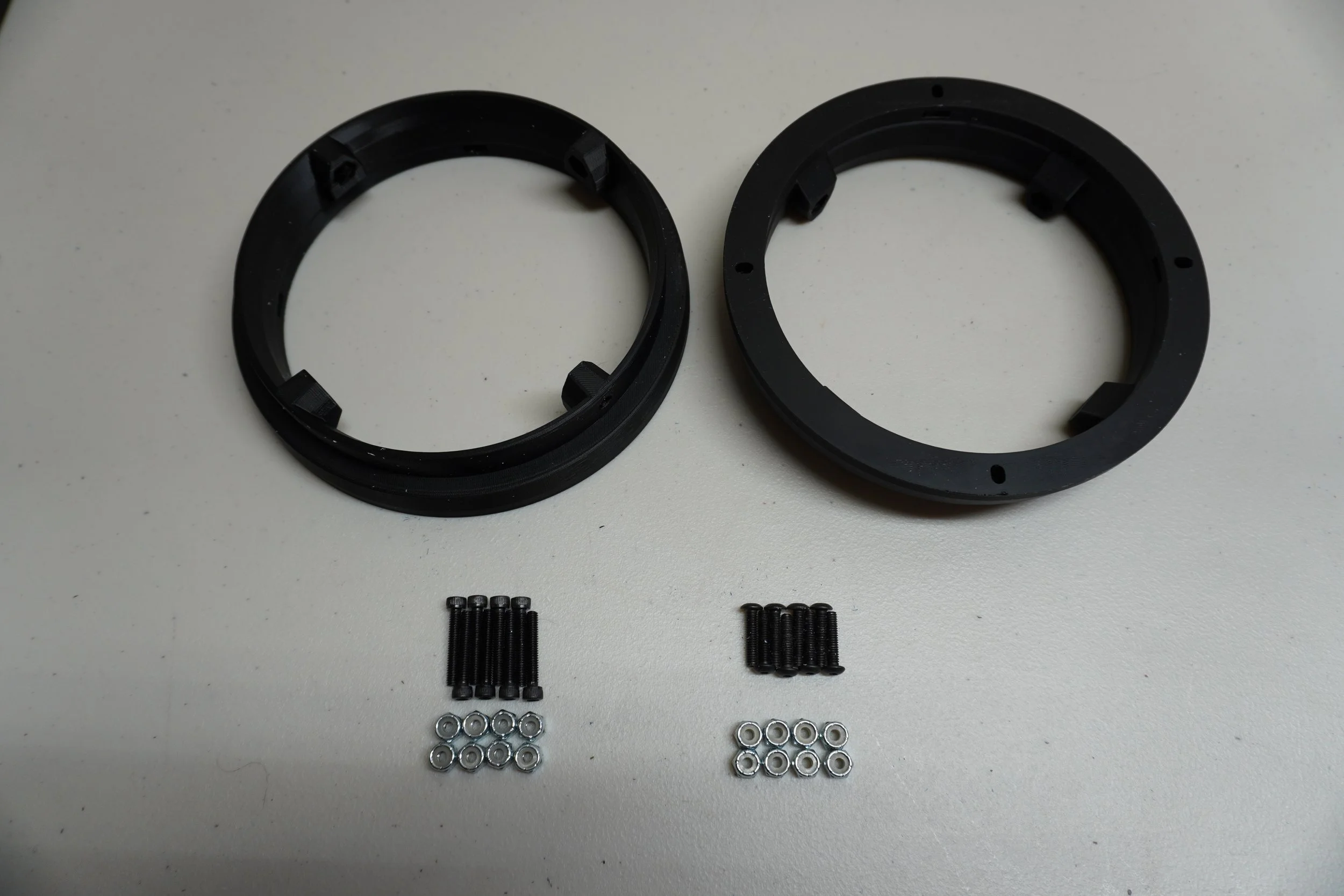

Baffle for 8” speaker
Mount a speaker into the end of a 8 inch schedule 40 pipe (tube), The baffle has a swell which allows a oversized speaker to fit into a 8 inch sch40 tube. Baffle is designed as a interlinked two piece construction and bonded to create single rigid mount.
The baffle overlaps the tube end and is mounted with four (4) 8-32 button head screws and locking nuts that are captured in the baffle.
PN: T8.40-B8

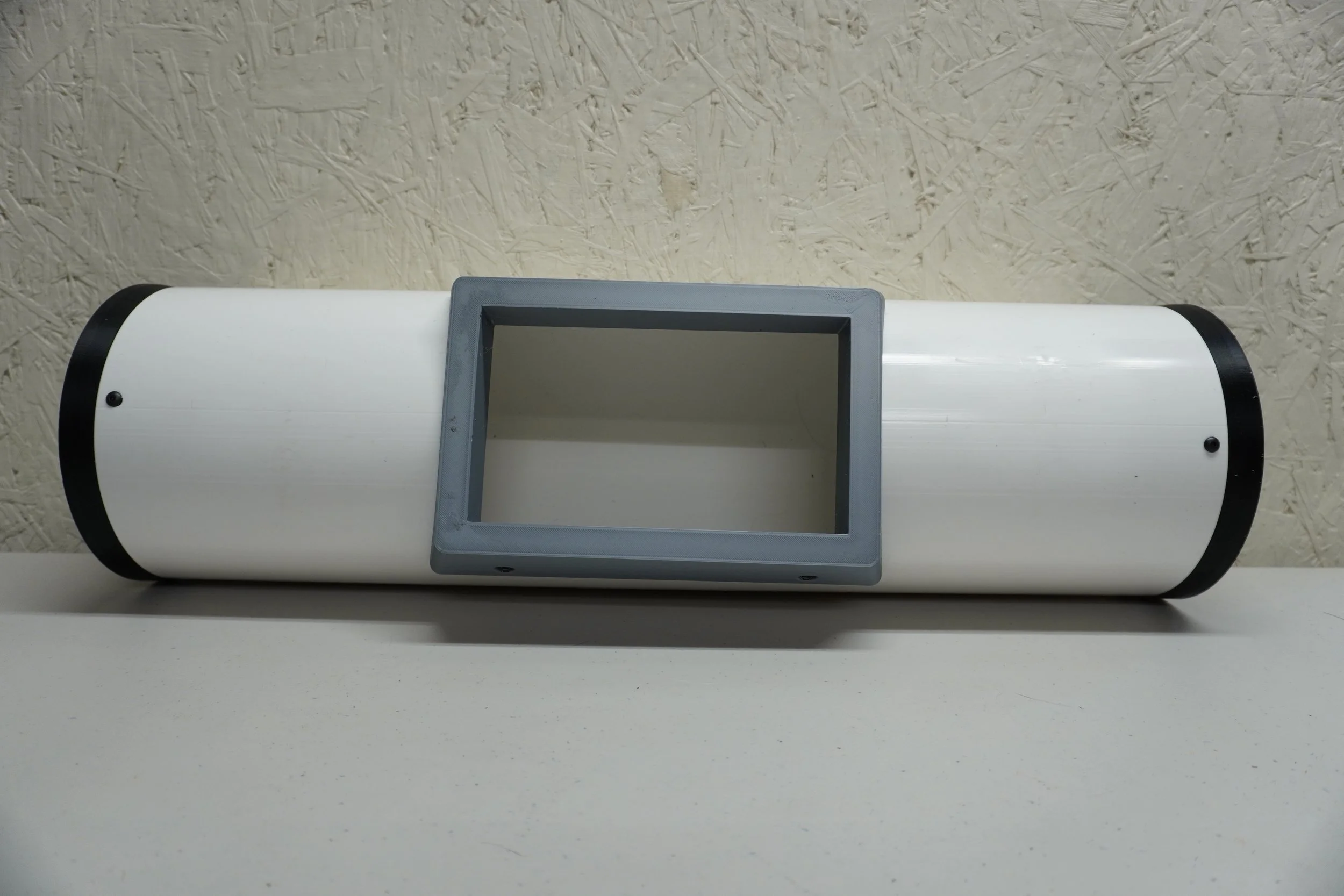

Mount for double DIN head unit
Mount a double DIN head unit (stereo) into a 8 inch schedule 40 tube. A slot must be machined into the tube. Double DIN units are popular as a video screen or GPS device screen which are often included features for larger head stereo units.
The mount overlaps the rectangular slot in the tube and is held in place with four (4) #8 sheet metal screws. Hardware is included with the kit
PN: T8.40-2DIN
